Model
|
1000W50
|
|
|
System Rated Voltage
|
12V(9V-16VDC)
|
|
|
Solar Module
|
Voc
|
27.6V
|
|
Vmp
|
>Vbat+1V
|
|
|
Imp
|
40A
|
|
|
Workable Power
|
0W~500W
|
|
|
Wind Turbine
|
Rated Voltage
|
12VAC（20.8VDC）
|
|
Rated Current
|
40A
|
|
|
Workable Power
|
0W~500W
|
|
|
Battery
|
Max Charging
|
30A
|
|
Special Note:The following are the optimal parameter settings, please do not modify
|
||
|
Uunder
|
Over Discharge Voltage
|
10.8V
|
|
Runder
|
Over Discharge Return
|
13.1V
|
|
Uover
|
Over Charge Voltage
|
15.5V
|
|
Rover
|
Over Charge Return
|
15.0V
|
|
BCV
|
Increase Charge
|
14.4V
|
|
Float
|
Floating Charge
|
13.8V
|
|
Ufanbraking
|
Wind Breaking Voltage
|
25.6V
|
|
DC Load
|
Out Power
|
0W~180W
(Per one-way) |
|
Rated Voltage
|
12VDC
|
|
|
Current Max
|
30A(15A*2)
|
|
|
Conversion Efficiency
|
﹥98%
|
|
|
Operation Mode
|
Default to streetlight mode
|
|
|
Environment
|
Temperature
|
1) Working:-20℃ ～50℃; 2)Storage:-30℃ ～70℃
|
|
Humidity (°C)
|
10% ～ 90% No condensation
|
|
|
Protection Grade
|
IP30
|
|
|
Weight
|
G.W
|
3.8KGS
|
|

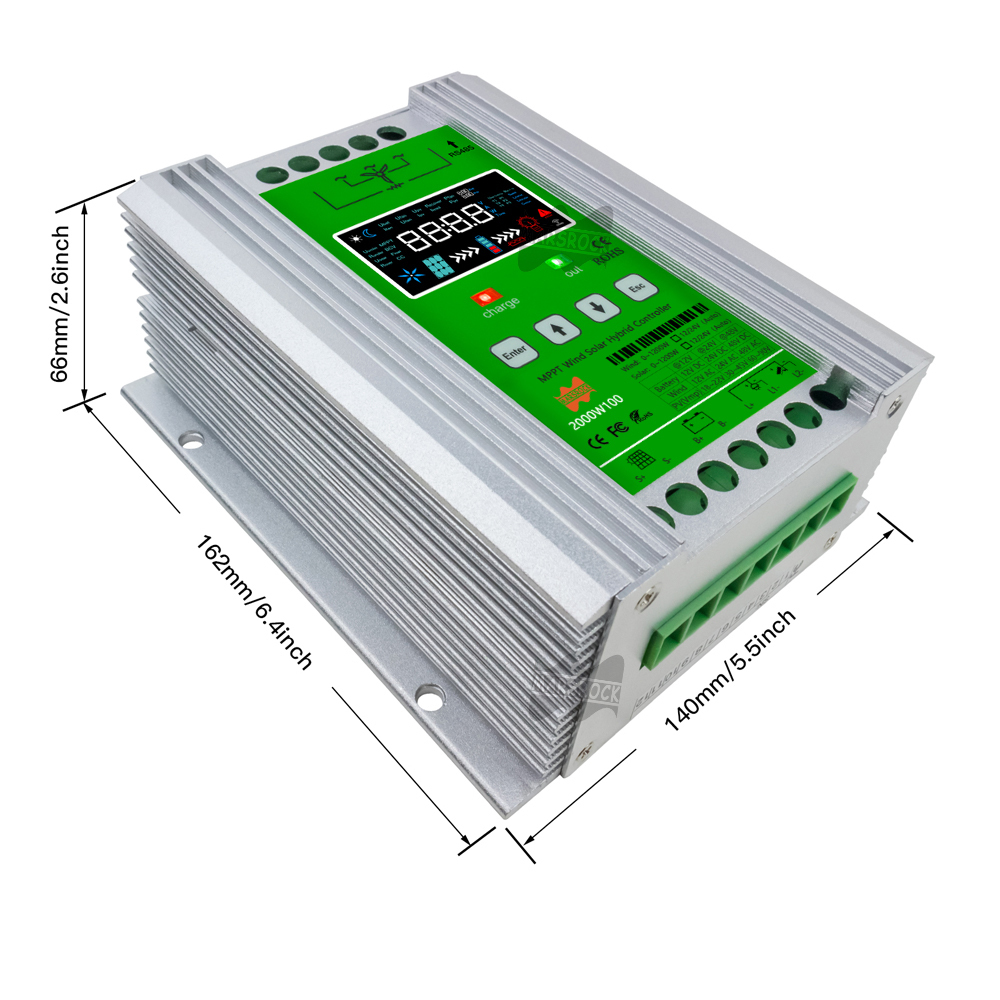

Size
|
Packing
|
36*31*13CM/14.2*12.2*5.1Inch
|
Product Highlights

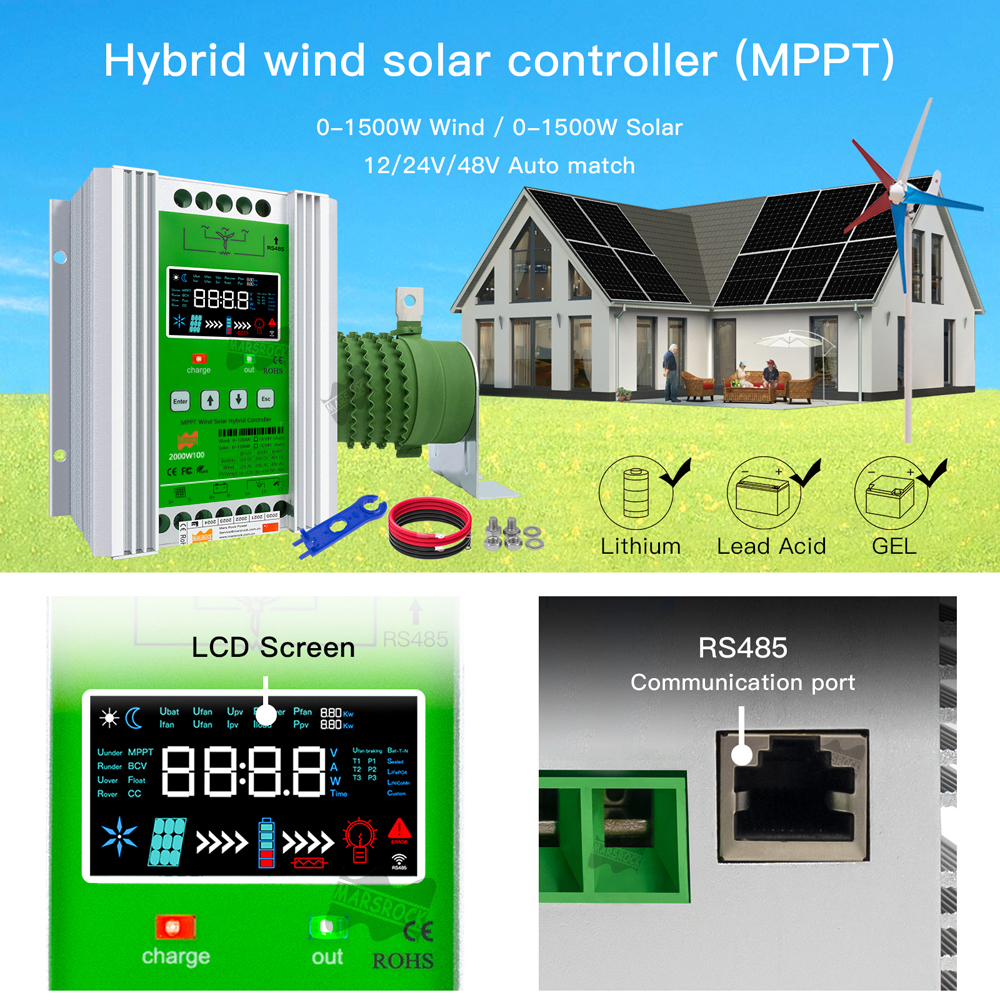

The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring(optional).
Application
The controller is suitable for solar off-grid system, automatically controls charging and discharging, and can be applied in communication base stations, household systems, street lighting systems, monitoring and other fields.
Product features

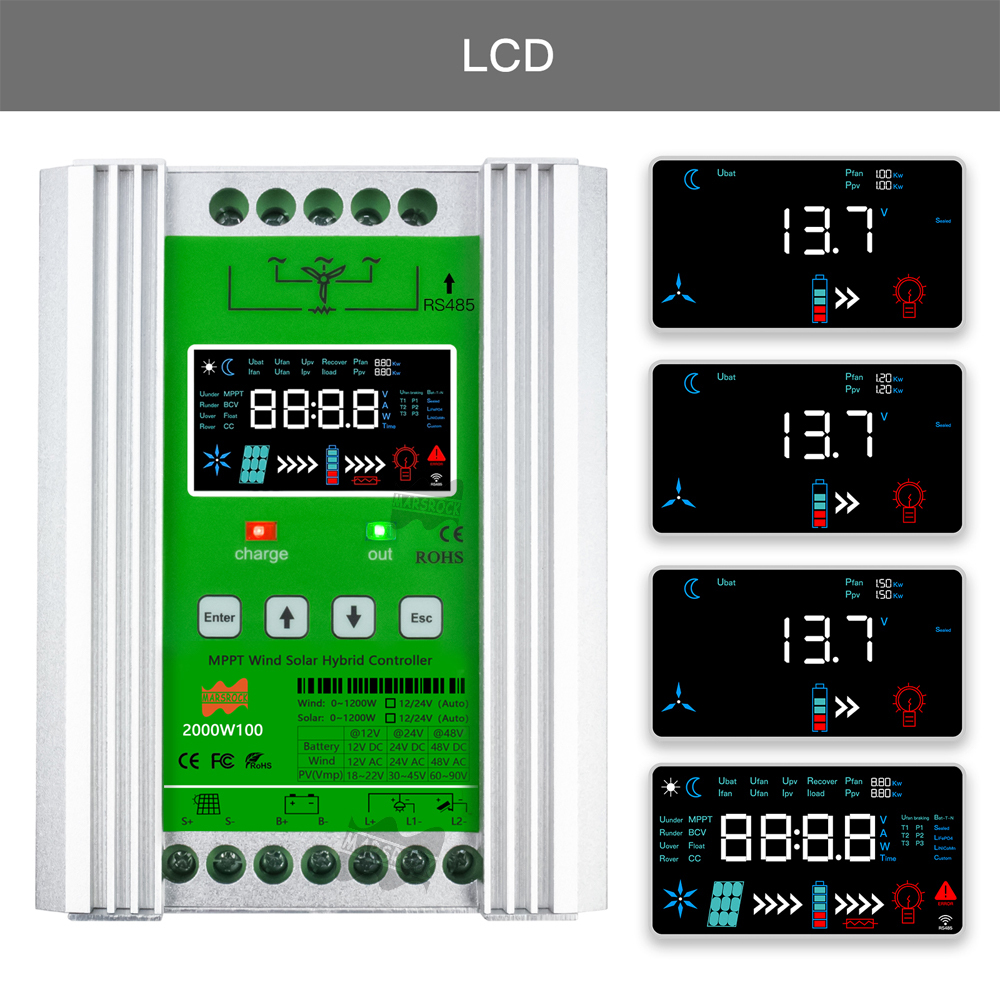

(1) The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
(2) The MPPT control algorithm used for Wind charging ensures MPPT charging at low wind speed.
(3) Wind three-stage charging mode:MPPT charging; lifting charging; floating charging.
(4) Solar three-stage charging mode:CC (constant current); lifting charging; floating charging.
(5) 12V/24V battery system automatically recognizes, or 24V/48V battery system automatically recognizes (Optional).
(6) RS485 communication can provide communication protocol to facilitate unified management and secondary development for customer.
(7) The controller operating parameters can be viewed and set through the mobile phone APP( Optional ).
(8) The controller has comprehensive protection functions such as overcharge, over discharge and overload;
(9) Four battery types charging mode can be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;
(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;
(11) The controller has wide adaptability, adaptive day and night;
